Every building is now a power system. We engineer it like one.

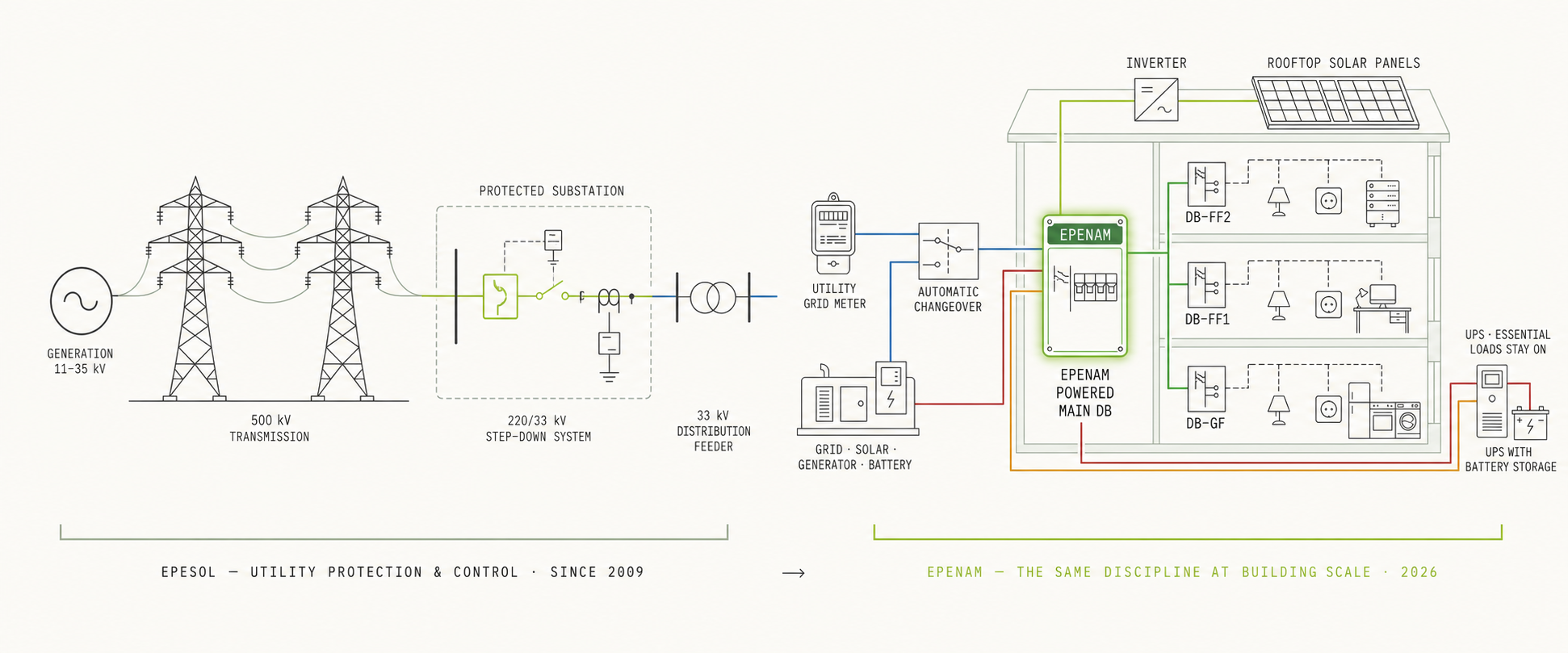

Grid, solar, inverter, generator — your building runs four sources. MEPESOL designs and builds the distribution board that makes them hand over safely: engineered, factory-built, tested and warrantied as one product.
ENGINEERING DESIGNEvery circuit drawn before it's built
The group delivers to — including OEMs who compete with us
SHT 01Why now
The utility grid got a second act — inside your walls.
We spent seventeen years engineering protection and control for utilities and OEMs. Buildings now face a smaller version of the same problem — and they are being served far worse.
What changed
Four sources per home
Every new build runs grid, solar, inverter and generator. That is a source-changeover problem — precisely the discipline of switchgear engineering.
What's missing
Boards improvised on site
Residential distribution boards are assembled loose on site from mixed parts. No design, no testing, no warranty — and nobody accountable when it fails.
What we bring
Switchgear discipline
Designed assemblies at building scale: engineered from the room schedule, built and tested before dispatch, documented at handover.
The group already builds panels that protect substations up to 500 kV. MEPESOL builds the same quality of assembly for the buildings people actually live and work in.
SHT 02The offering
Nine offerings on one live wire.
From the first drawing to the commissioning certificate — every stage below is ours, on one circuit, with one party accountable end to end.

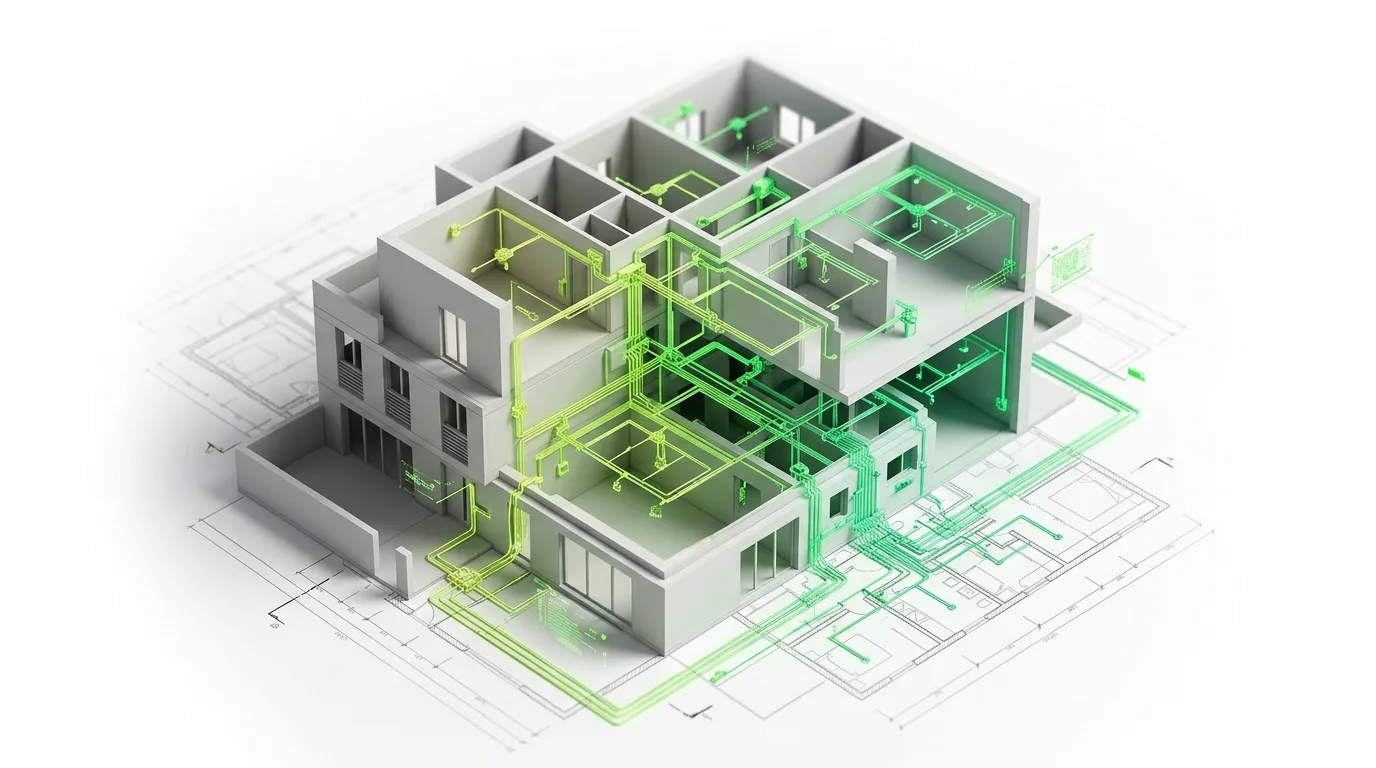

01DESIGN
Engineering design
Electrical layouts drawn onto the architect's plan — every light, fan, socket and essential circuit placed room by room, then sized, scheduled and stamped by an engineer.
YOU RECEIVEStamped drawing set
SCOPE
Room-by-room load schedule with diversity
Lighting, power and essential-load layouts
Single-line diagram & source architecture
Cable sizing and voltage-drop checks
Earthing and bonding scheme
As-built set issued at handover
02PRODUCT

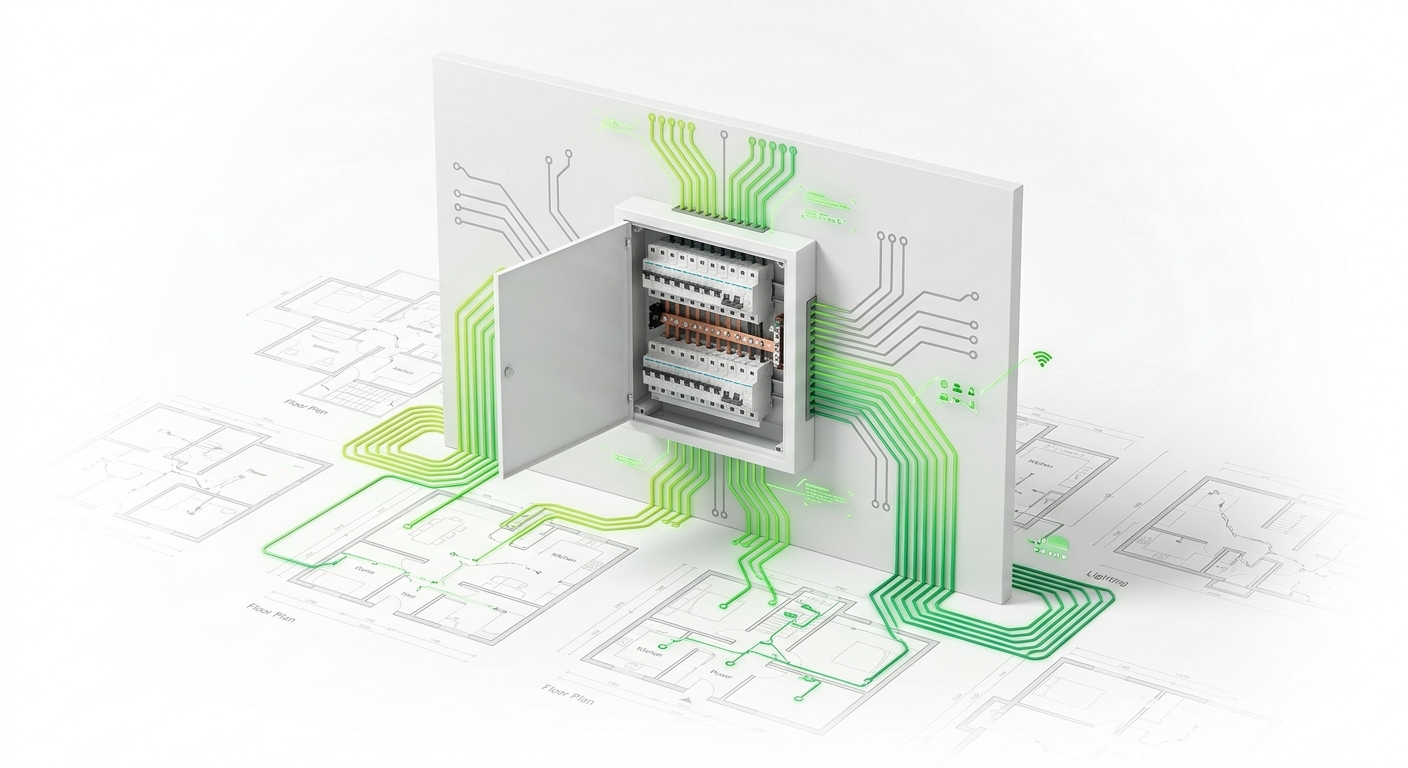

Distribution boards
Not an enclosure filled loose on site. A designed assembly — engineered, wired, labelled, tested and warrantied as a single product.
YOU RECEIVEEN-DB series board
SCOPE
Way schedule generated from the room list
Coordinated breaker selection — MCB, RCBO
Copper busbar, separate earth & neutral bars
Sealed and labelled against the schedule
Built to IEC 61439-3 practice
One party responsible if anything fails
03BUILD

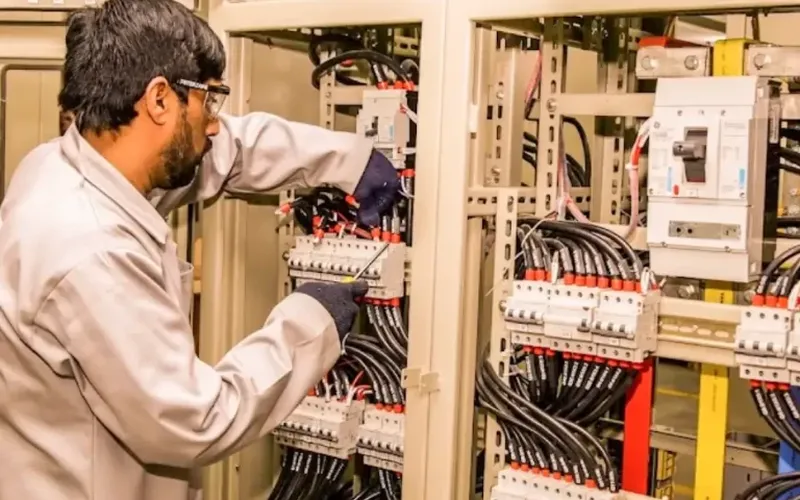

Panel shop & factory build
Boards are assembled and wired in a controlled facility, then routine-tested before they ever reach your site.
YOU RECEIVETest-passed assembly
SCOPE
Factory wiring to the approved schematic
Torque-checked terminations
Routine tested before dispatch
Traceable component bill of materials
Flush, surface and extension-box options
Powder-coated residential enclosures
04SYSTEM

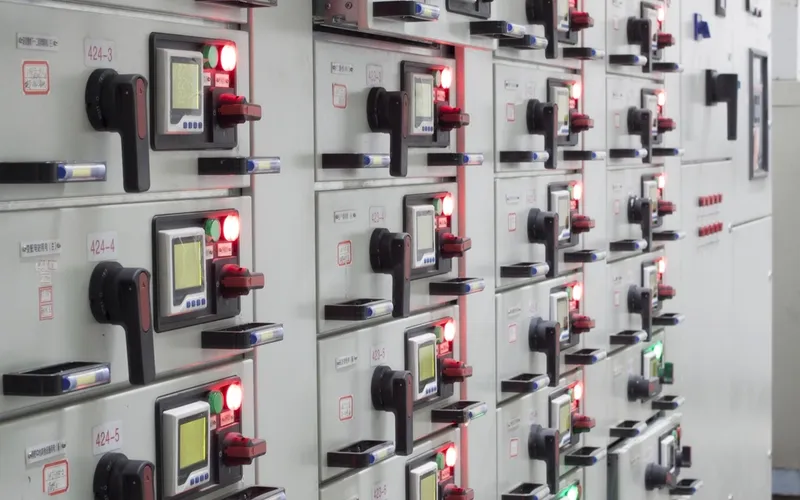

Source changeover
Grid, generator, solar and UPS — four supplies handed over automatically, proven on a truth-table rather than improvised at the meter.
YOU RECEIVEProven changeover scheme
SCOPE
Priority: meter → generator → solar
Changeover block on every floor
Essential loads stay live through transfer
Manual override and lockout positions
Source indication at the board
Truth-table documented and tested
05ENERGY

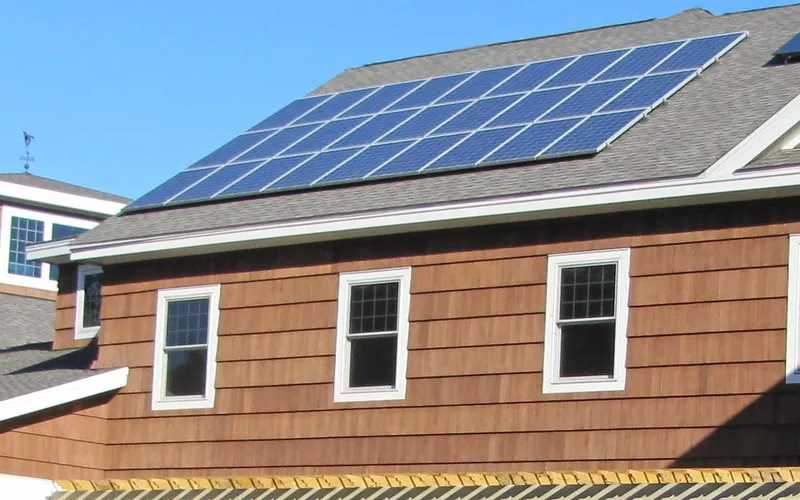

Solar integration
From array to inverter to board — sized, mounted and tied into the changeover as one engineered system, not a bolt-on.
YOU RECEIVECommissioned PV system
SCOPE
Array sizing against measured demand
Mounting and roof penetration detail
Inverter selection and string protection
DC/AC isolation and surge protection
Net-metering ready wiring
Maintenance and cleaning cycles

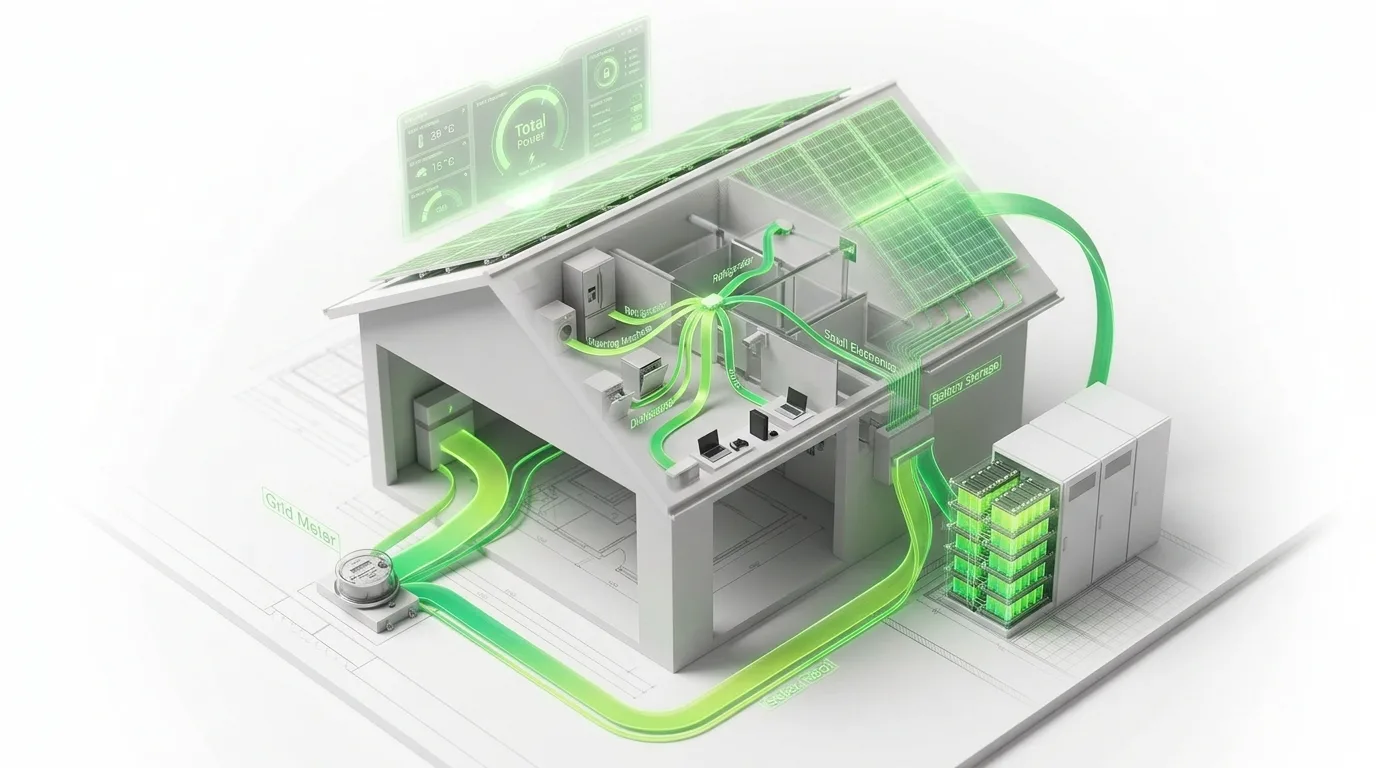

06ENERGY
Battery storage · BESS
Store the sun, ride the outage. Batteries sized against your real essential load, not against a brochure.
YOU RECEIVESized storage bank
SCOPE
Capacity sized to measured demand
Seamless transfer on supply loss
Battery management and health monitoring
Ventilated, protected battery enclosure
Charge priority — solar before grid
Runtime reporting per circuit

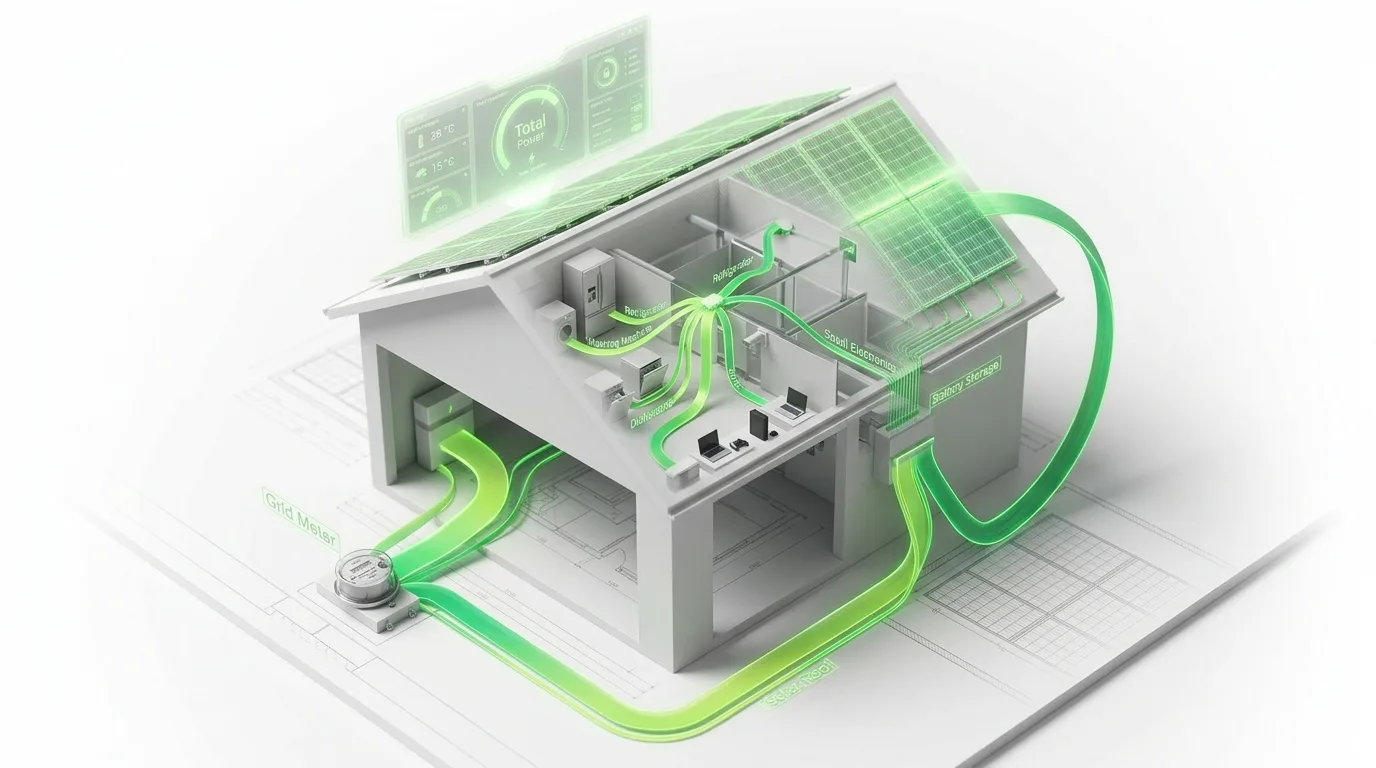

07INTELLIGENCE
Energy management · EMS
See where every watt goes. Per-circuit metering that turns a monthly bill into a decision you can actually act on.
YOU RECEIVELive energy dashboard
SCOPE
Circuit-level metering at the board
Appliance-level consumption breakdown
Load scheduling and peak shedding
Alerts on abnormal current draw
Tariff-aware run scheduling
Monthly consumption reporting

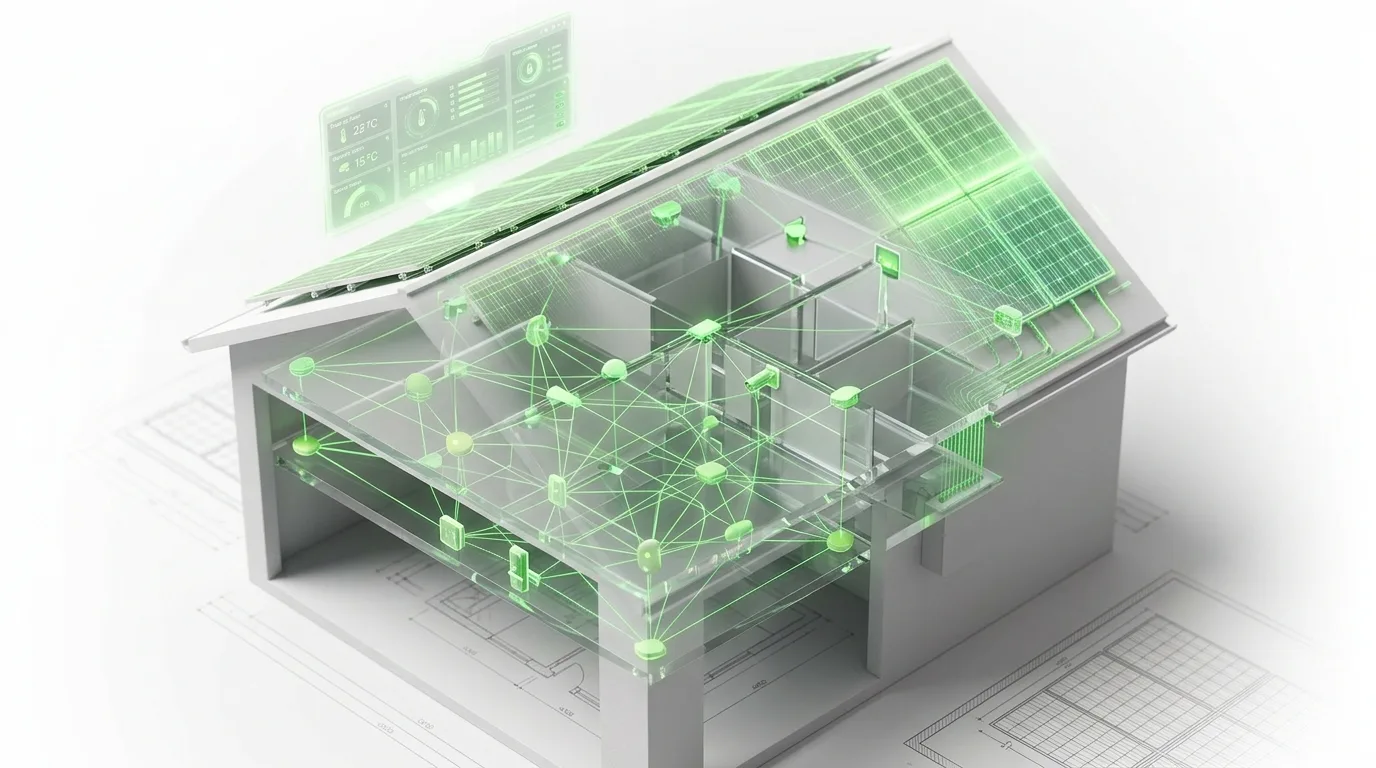

08INTELLIGENCE
Building management · BMS
Lighting, HVAC, access and alarms on one network — scoped to what a building actually needs, not a gadget catalogue.
YOU RECEIVEIntegrated control layer
SCOPE
Lighting scenes and occupancy control
HVAC scheduling by zone
Access control and door monitoring
Fire, fault and intrusion alarms
Water pump and tank-level control
One dashboard, one login
09DELIVERY
Installation, testing & commissioning
Our own crews install what we designed and built — then prove it works, on record, before you are handed the keys.
YOU RECEIVECommissioning certificate
SCOPE
Site survey against as-built conditions
Board mounting, cabling and terminations
Insulation, continuity and polarity tests
Earth-loop impedance and RCD trip times
Changeover proven live across all sources
Test records, warranty and walkthrough
In-house — electrical, end to end
Design & drawings · boards & panels · solar integration · installation · testing & certification. This is our own bench, and it is the core of what we sell.
Coordinated partners
Mechanical, plumbing and architecture are delivered through established partners under our coordination — one team, one programme, one contract, and we say so up front.
SHT 03The board range
The board is the product — and it can see.
From a 5 marla house to a hospital LT panel. Pick a segment and a component tier, then switch on EN-SENSE — a current transformer on every breaker that turns the board into a live energy meter for the whole building.
Standard range
Engineered PROJECT SCALE
Component tier
Energy monitoring
Our standard tier. Breakers and busbar chassis from one certified maker, so the assembly keeps its type-test validity — and the cost advantage shrinks the price premium over loose parts.
21:47●●● 5G ▐▐▐
MEPESOL SenseLIVE
THIS MONTH · ESTIMATEDPKR 48,750NOW DRAWING 4.2 kW
Air conditioning21,900
Water heater7,300
Refrigeration5,200
Water pump4,100
Lighting3,650
Other6,600
⚠ AC-2 · 31% above normal — service reminder set
Geyser · off 23:00Solar · exportingUPS · 100%
ModelEN-DB-5M/48
ArchitectureSingle board · 1 meter
ComponentsCE / UL / KEMA
Metering40 circuits
EnclosureWall mount · 1.2mm
01CT on every breakerA split-core current transformer clips over each outgoing circuit inside the board — no rewiring, no extra meters on the wall.
→
02Gateway in the boardReadings are collected by the EN-SENSE gateway mounted in the same enclosure and pushed out over Wi-Fi or ethernet.
→
03App & desktopYou see consumption per appliance, per floor or per tenant — live draw, monthly cost, and alerts when something starts drawing more than it should.
Standard-range circuit counts are design-engine outputs for representative houses; the 10 marla figure is indicative pending a full room schedule. Engineered segments are sized against the project's own drawings and load study — board count, ratings and essential/non-essential segregation follow the design, not a catalogue page. Breakers are illustrative representations, not manufacturer product photography; brand names denote component tiers only. Send us your drawings for a scoped quotation.
SHT 04The design engine
Room list in. Drawing set out.
Every MEPESOL board starts as data, not as a sketch. A deterministic rules engine — engineering standards as code — turns the plan into schedules, schematics and a priced bill of materials.
AI-ASSISTED
STAGE 1
Read the plan
Room list and source configuration extracted from the architectural drawing. A human confirms before anything is generated.
DETERMINISTIC
STAGE 2
Apply the rules
Circuit schedule, breaker selection, DB sizing, changeover template and list of apparatus — engineering rules as code, not guesswork.
CAD
STAGE 3
Render the drawings
Structured output drives the drawing set: general arrangement, schematics, truth-tables, apparatus list.
LICENSED
STAGE 4
Engineer signs off
The non-standard remainder is flagged for review. A licensed engineer checks and stamps every issued set.
The 4-rule DNA — every room, every time
1Essential (UPS) circuitRCBO · double-wire
2Light & fan circuitMCB
3Power socket circuitRCBO · dedicated earth
4Air-conditioner circuitMCB · dedicated earth
Separate protection per room means a fault trips one circuit in one room — not the whole floor. Dedicated earthing on every socket and AC circuit.
The changeover truth-table — generated, not hand-drawn
SOURCE
BF M1&M2
BF M3
BF M4
BF GEN
BF SOLAR
METER 1
1
1
1
1
1
METER 2
2
1
1
1
1
METER 3
0
2
1
1
1
GENERATOR
0
0
0
0
2
SOLAR
0
0
0
2
1
The identical block instantiates per floor plus solar backup — only the labels change. What used to be redrawn by hand for every job is now generated in seconds, and checked by an engineer.
SHT 05Delivered work
Eleven projects. Named by scope, not by client.

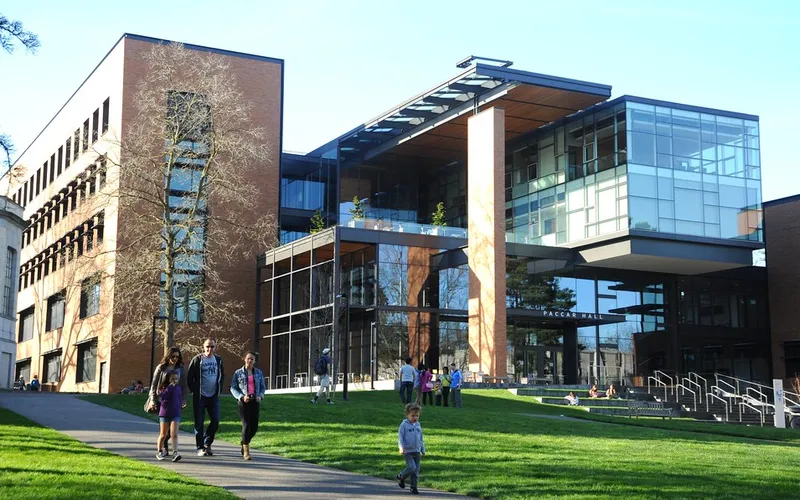

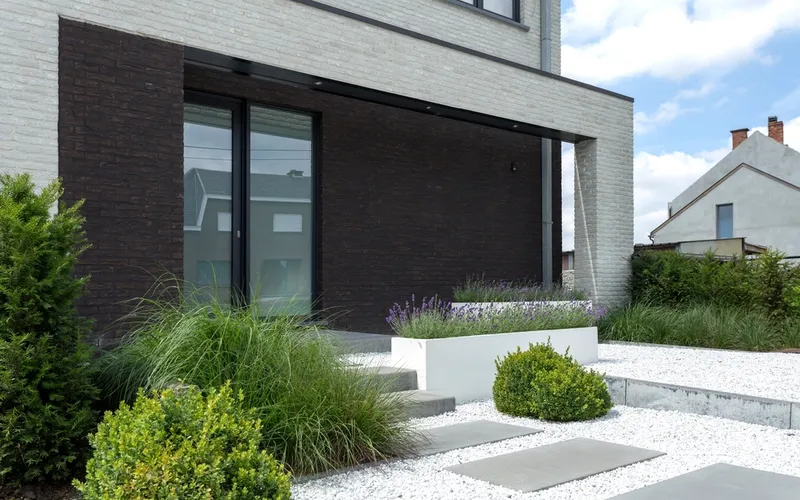

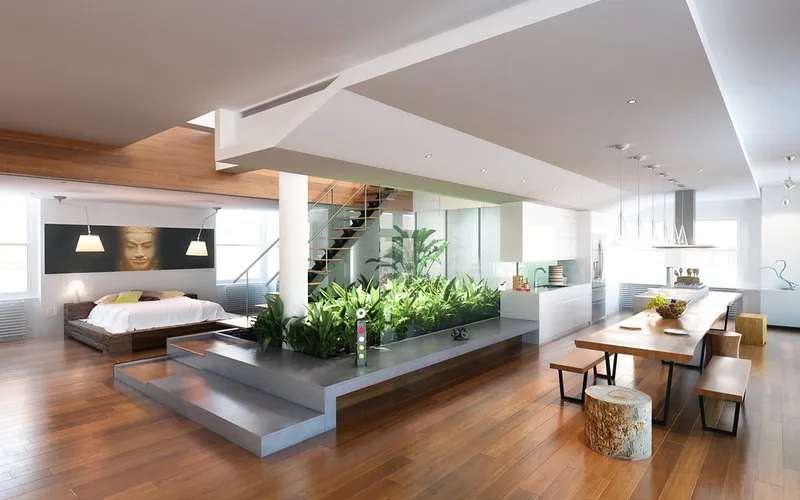

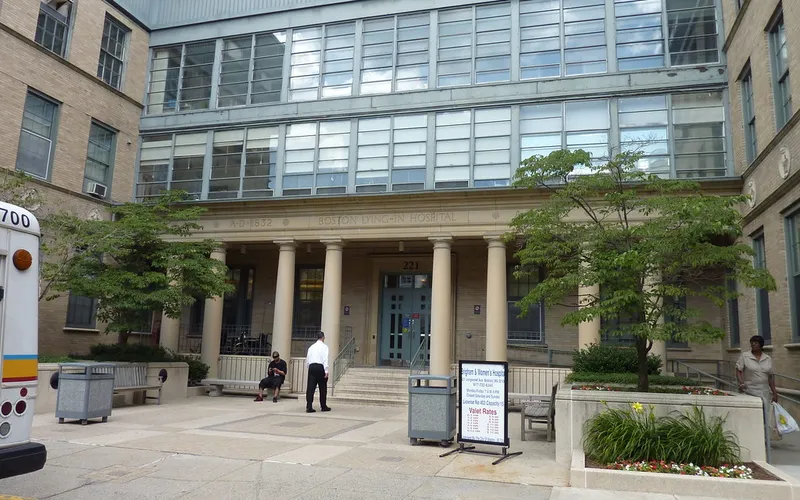

Houses, an institute, a hospital, a factory and a laboratory — the work below has been designed, drawn and issued. Client names and addresses are withheld; open any card for the brief.
SHT 06The group behind it
Backed by seventeen years of power-system engineering.
MEPESOL is the MEP and LV company of the EPESOL Group — engineers-owned since 2009, trusted by the OEMs most companies put on their slides as aspirations.
0
Projects delivered
0
Customers served
0
Client retention
0
Countries served
1M+
Engineering hours
EPESOL
Power system protection & control
Pakistan2009
United Kingdom2011
Saudi Arabia2023
MEPESOL
MEP & low-voltage solutions
Pakistan2018
Canada2024
LV Solutions2026
THIS SITE
EPESYS
Engineering software
Pakistan2022
United States2023
Offices in five countries. Boots in thirty.
HEAD OFFICE — LAHORE
OFFICES — UK · KSA · USA · CANADA
SERVICE FOOTPRINT
SHT 07Working with us
Three ways in. Every job quoted on its own drawings.
MODEL / A
Design only
We produce the complete electrical design package — schedules, single-lines, schematics, apparatus list. You procure and build.
✓Engineering designincluded
–Boards suppliedby others
–Installed & commissionedby others
PRICED ASFixed fee by plot size or built area
MODEL / B
Design & supply
Design plus the distribution boards themselves — factory-built, tested and delivered to site ready to install.
✓Engineering designincluded
✓Boards suppliedincluded
–Installed & commissionedby others
PRICED ASFixed fee plus itemised supply
MODEL / C
Full MEP delivery
Design, supply, installation, commissioning and handover under one contract — one party accountable end to end.
✓Engineering designincluded
✓Boards suppliedincluded
✓Installed & commissionedincluded
PRICED ASProject quotation against scope
What moves the number: plot size and circuit count · component tier · number of supply sources · solar and backup scope · site conditions.
Send us the architectural drawings.
We'll come back with a load schedule, a single-line diagram and a scoped quotation — no cost, no obligation. It's the fastest way to see how we work.
